The RRC3+ System has many roots that were originally planted in an older legacy project started back in 2003 dubbed the 'mPAC'.ย This project never got much beyond the concept and prototyping stages, however it laid the groundwork for many of the fundamentals used by the RRC3 system today.ย It's only appropriate that the RRC3 inherit the original mPAC "Archie" logo.

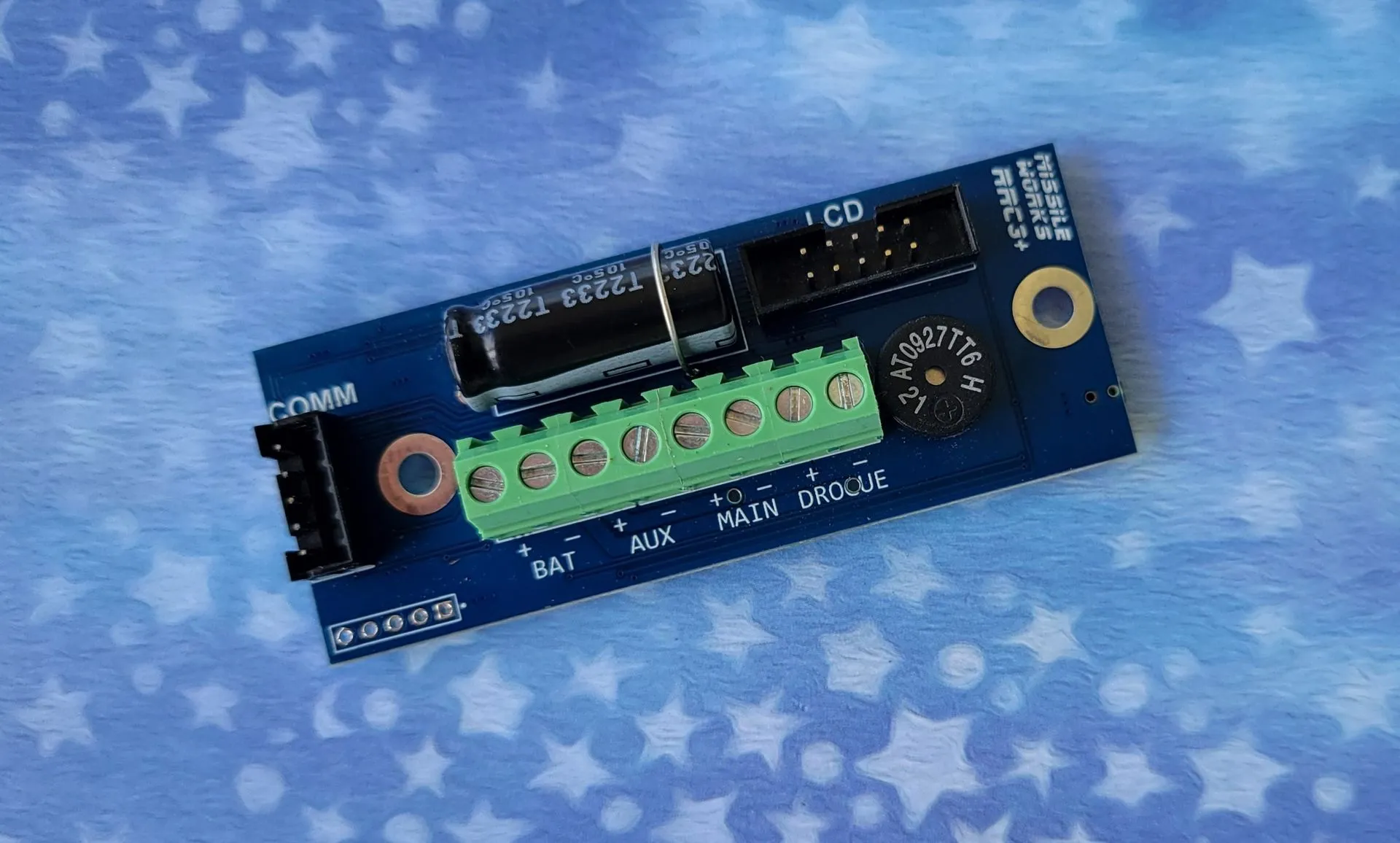

The Rocket Recovery Controller 3+ (RRC3+) is a barometric dual-deploy altimeter, with the features of high-end units, at the cost of those with a more modest feature set. In addition to basic dual-deploy capability, the RRC3+ is a multi-flight recording unit, allowing you to fly all day, without the need to stop and download data in between flights.
The RRC3+ also provides a third, highly flexible and programmable 'Auxiliary' output which can provide staging, airstarts, backup events, and a host of other applications. The RRC3+ can also support real-time data streaming capabilities in flight for our RTx telemetry system or for interface with other custom control or downlink radio systems.
Despite this unrivaled suite of intrinsic capabilities and expandability, the RRC3+ still maintains its simple "buy it and fly it" operations.ย You can literally attach a battery and fly it "dual-deploy" out of the box.
Newly incorporated features of the RRC3+ include:
- Measures only 2.56" (65mm) x 1" (25.5mm) and mounts identically to the RRC2+ and RRC2L
- Impervious to Lithium Battery discharge current using upgraded "IntelliFET" output events
- Upgraded 4A capable "IntelliFET" Aux output for enhanced staging or cluster ignitions
- Supports all m3 Components (LCD Terminal, UDC interface, Bluetooth) and RTx Tethering
- Still 9V Alkaline battery capable and button programmable
Specifications
Architectural Features
ยท 16MHz 16-bit MSP430 Series mCU
ยท 4Mbit SST Flash Memory
ยท MSI MS5607 Pressure sensor
Note: This high resolution altimeter sensor has a 24 bit ฮฮฃ ADC, with internal factory calibrated coefficients which provide a precise digital 24 bit pressure and temperature. The RRC3 design also provides a dedicated "baro-only" regulated power system and applies other noise reduction techniques to further accurize pressure data.
Operational Ranges
ยท 40K MSL (typical) / 100K MSL (max)
Power Requirements
ยท 3.5 VDC to 10.0 VDC / Optimized for 9V battery power
ยท 6ma @ 9V quiescent / 35ma @ 9V during piezo and LED operation
Physical Properties
ยท Length 65mm (2.56")
ยท Width 25.5mm (1")
ยท Weight ~14 grams
Output Events
ยท Drogue / Main / Auxiliary
ยท 2A / 1 sec pulse Drogue & Main
ยท 4A / 1 sec pulse Aux
Flight Data Recording
ยท 7 flights with ~28 minutes of data per flight
ยท Each flight logs 20Hz altitude/velocity and 1Hz temperature/battery voltage
Flight Data Telemetry
ยท 0.5Hz or 1Hz 9600 bps configurable serial stream
ยท Timestamp, Altitude, Velocity, Temperature, Events
HMI Feedback
ยท Programmable frequency and extra loud 85dB magnetic buzzer
ยท High efficiency red LED status indicator
Expansion Peripherals and Accessories
ยท UDC USB interface cable to capture recorded flight data
ยท Plug in LCD Terminal for quick field configuration and data retrieval
ยท mDACS PC application for advanced flight analysis, configuration, and testing
ยท GPS / Telemetry package capable using RTx System
ยท HC-06 Bluetooth module for wireless mDACS interface operations
